ViRTEx Realtime Experiment Control

ViRTEx-100/200

Realtime Experiment Control Device
The ViRTEx-100/200 provides sophisticated electronic for experiment control, where highly accurate timing is essential. Typically it is used in Confocal, FRAP and TIRF experiments. All of these applications need fast and highly accurate TTL synchronization of scientific interline, frame-transfer or sCMOS cameras with illumination devices like Poly-chromator, LED or laser systems.
Furthermore for precise Z-stack 3D image acquisition, highly accurate Z-Focus Piezo control is required and now supported by the ViRTEx-200 device.



ViRTEx-100/200 model for TTL synchronization and analog control:

  • TTL synchronization module for fast experiment control e.g. device streaming
  • Camera / illumination device synchronization
  • Connection via USB 2.0
  • 16 TTL output lines
  • 4 analog out channels (ViRTEx-200), optional up to 8 channels
  • Analog output 16 bit with 0 to 10V, 0 to 5V or -5 to 5V
  • 4 camera inputs connector board (exposure signal for stream mode)

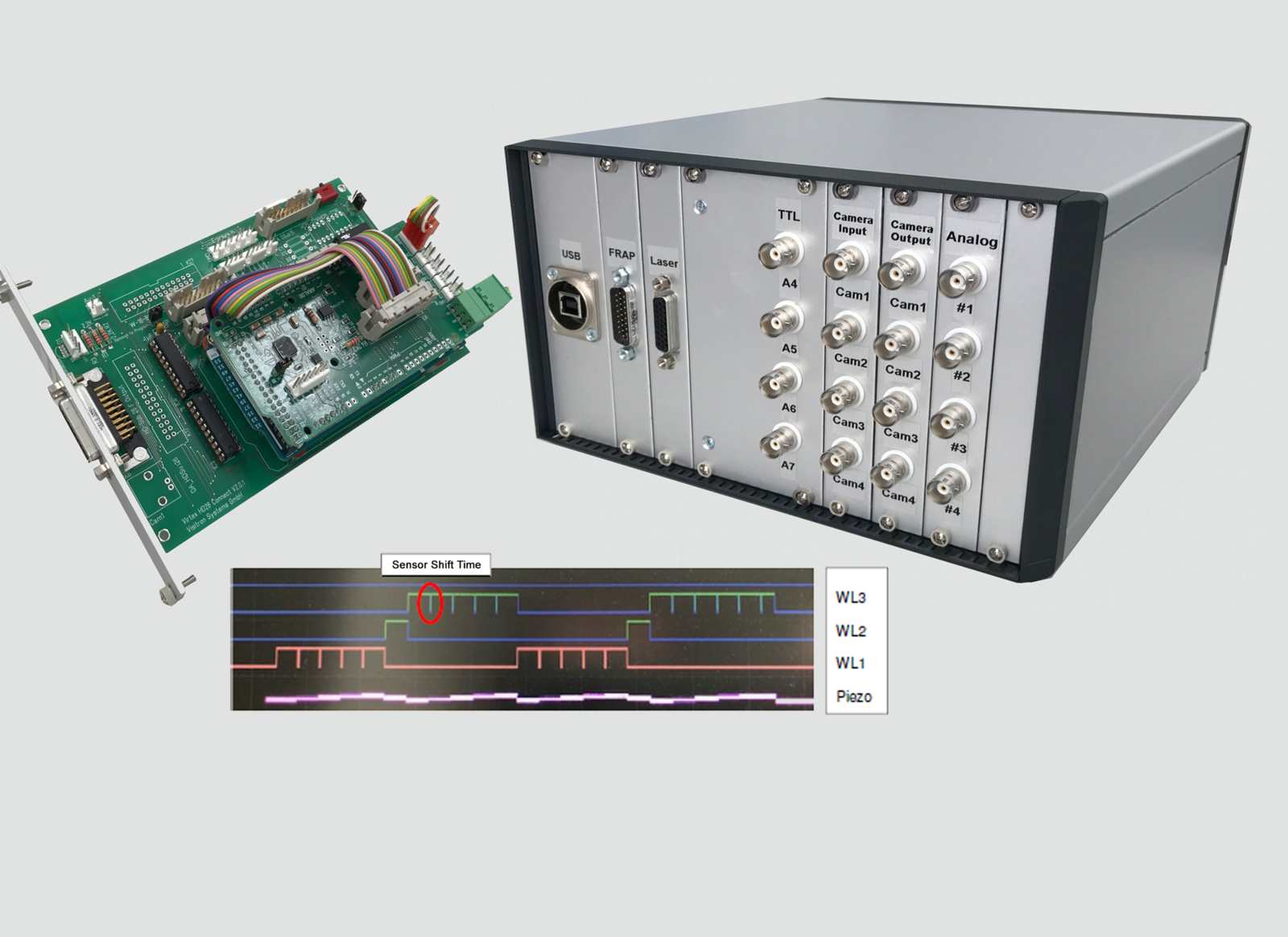

  • Available models: ViRTEx -100 / 200 stand-alone devices ViRTEx -110 / 210 control boards for VS-Laser
