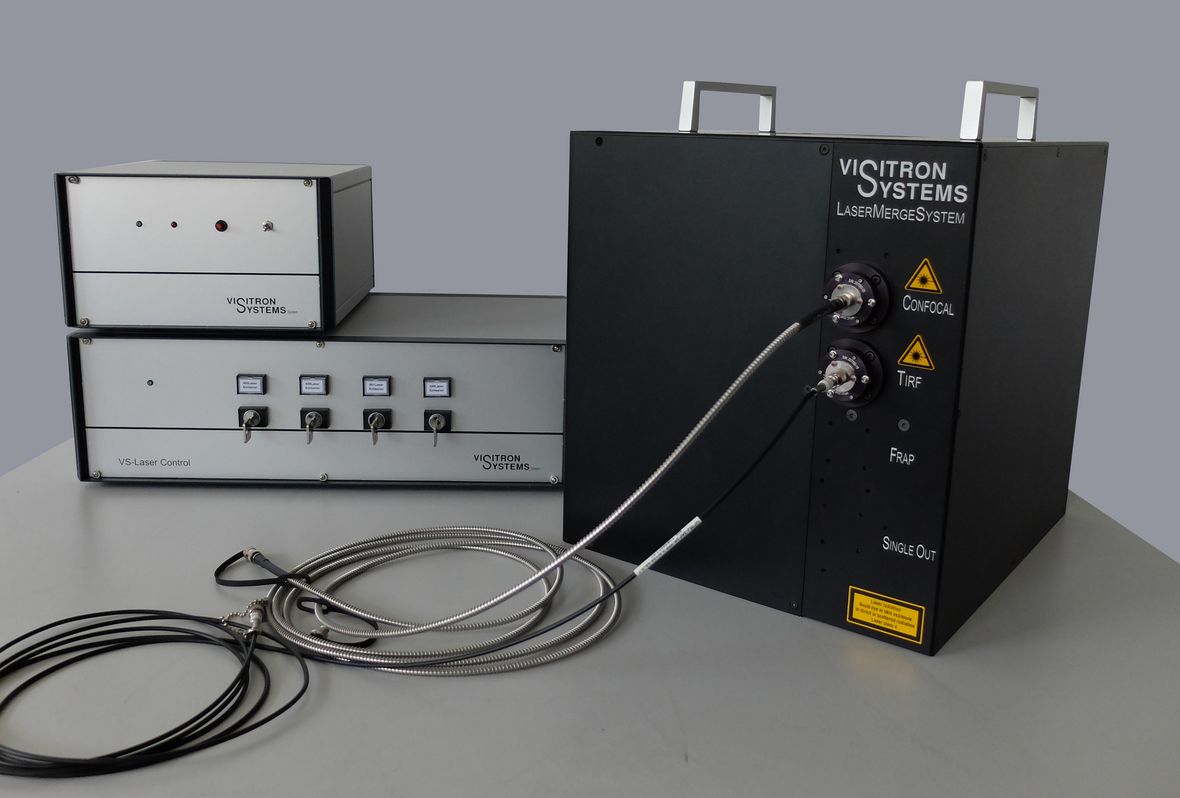

VS-LMS "LaserMergeSystem"
Laser Combiner with up to 8 laser lines
The new generation of Visitron Systems Laser Merge Systems (LMS) is now available in a very compact design with up to 8 laser lines, three FC fiber outputs and an optional motorized alignment function.
Key features of the new VS-LMS system:
- Multi-line laser source including up to 8 lasers
- All solid-state lasers for high stability and lifetime
- Port Switcher with up to 3 output ports e.g. VisiScope Confocal, VisiFRAP, VisiTIRF including iLAS support
- Thermally managed system

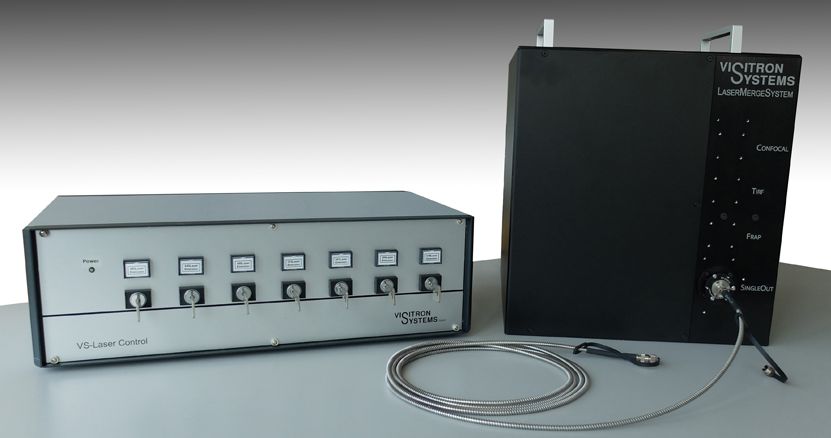

VS-LMS-MOT100
Flexible Multiple Laser Engine with Motorized Laser Alignment
No more tedious, complex and time consuming laser alignment! The new generation of Visitron Systems Laser Merge Systems VS-LMS-MOT100 is available with an optional AutoCalibration (AC) function. After a rough manual laser alignment, to reach that the laser light is already visible on the fiber output, the VisiView algorithm is used for the piezo
positioner for reaching maximum output power.
Key features of the new VS-LMS-MOT100 system:
- Multi-line laser source including up to 8 lasers
- Combination of Diode or DPSS lasers for high stability and lifetime
- Fast switching of DPSS laser by VS-AOM
- Thermally managed system
- Single output port FC coupled
- Optional: External Port Switcher with up to 3 output ports e.g. VisiScope Confocal, VisiFRAP, VisiTIRF including iLAS support

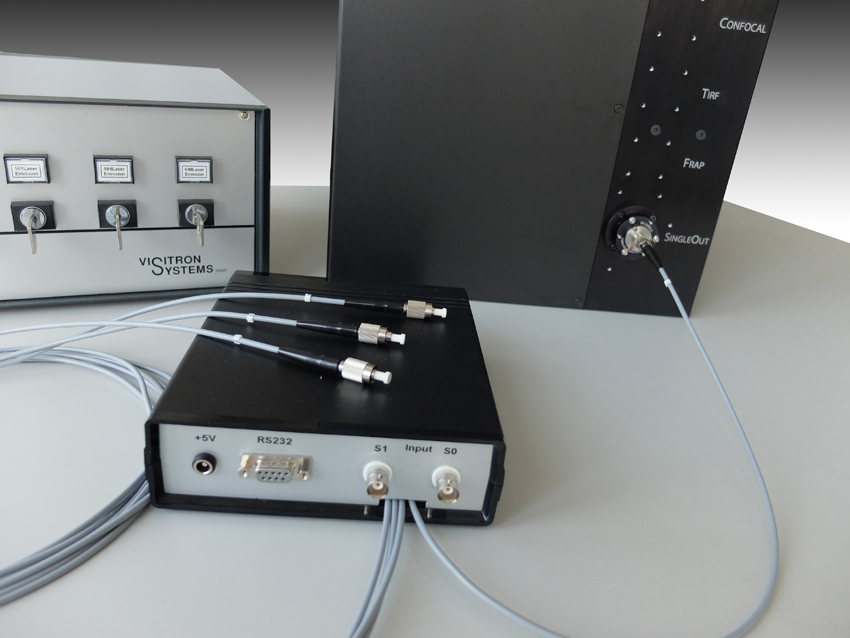

Option: External Port Switcher
Port Switcher with up to 3 output ports e.g. VisiScope Confocal, VisiFRAP, VisiTIRF including iLAS support

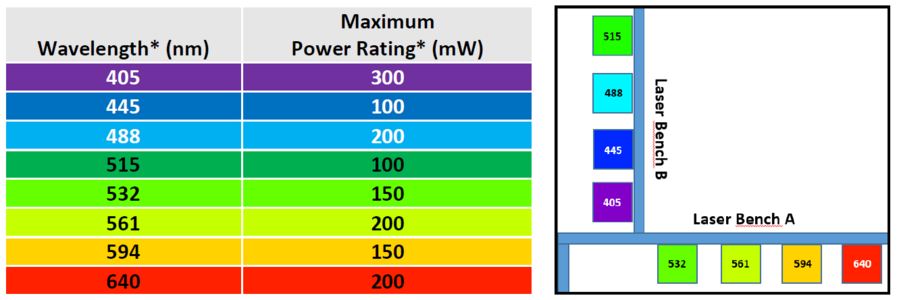

Modularity of VS-LMS Laser Combiner AC:

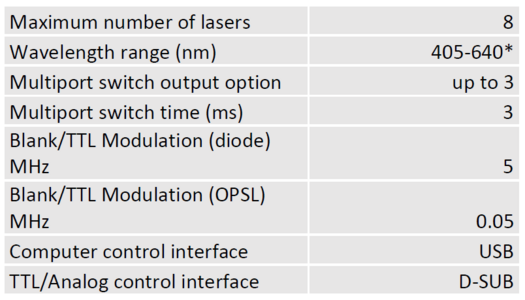

Specifications:
